AIRMAR B150M Chirp-ready Tilted Element Thru-hull

Name: AIRMAR B150M Chirp-ready Tilted Element Thru-hull
SKU: B150M
Availability: InStock

442,30 € – 450,30 €
You save

Inclination

Clear

Total:

Request a Quote

SKU: B150M Category: CHIRP Ready Thru Hull Sensors

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Airmar’s B150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600′) with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depth.

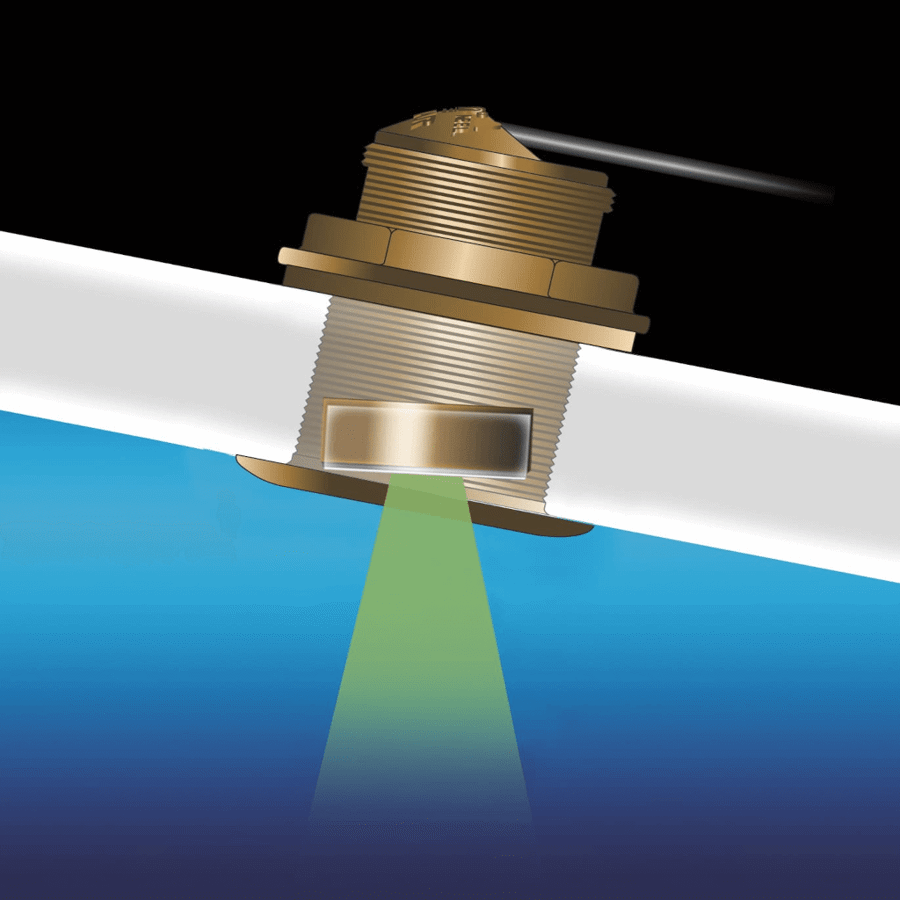

Tilted Element^™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Available in three Tilted Element models:

Fixed 20° tilted version for 16 to 24° hull deadrise angles
Fixed 12° tilted version for 8 to 15° hull deadrise angles
Fixed 0° tilted version for 0 to 7° hull deadrise angles

Features

Depth and fast-response water-temperature sensing
300 W of power with a maximum depth of 183 m (600′)
Medium frequency: 95 to 155 kHz
- 26° x 17° beamwidth put more energy on targets for great target separation
60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
Low-profile, thru-hull housing provides good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Bronze housing for use in a fiberglass or wood hull
Also available as a transom mount (TM150M)
Patented Xducer ID^® technology
