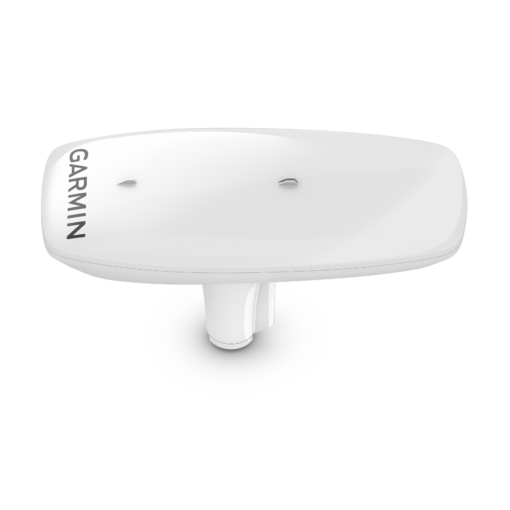

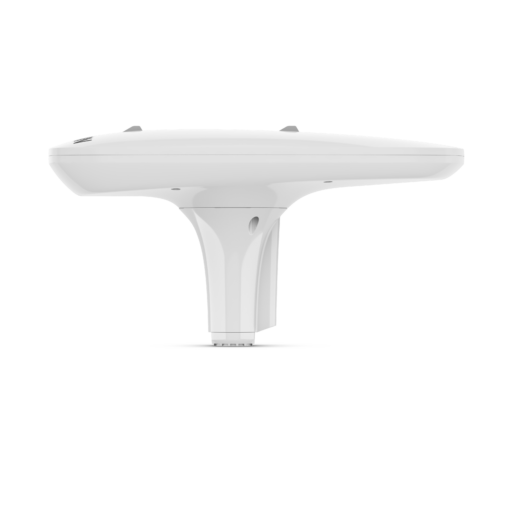

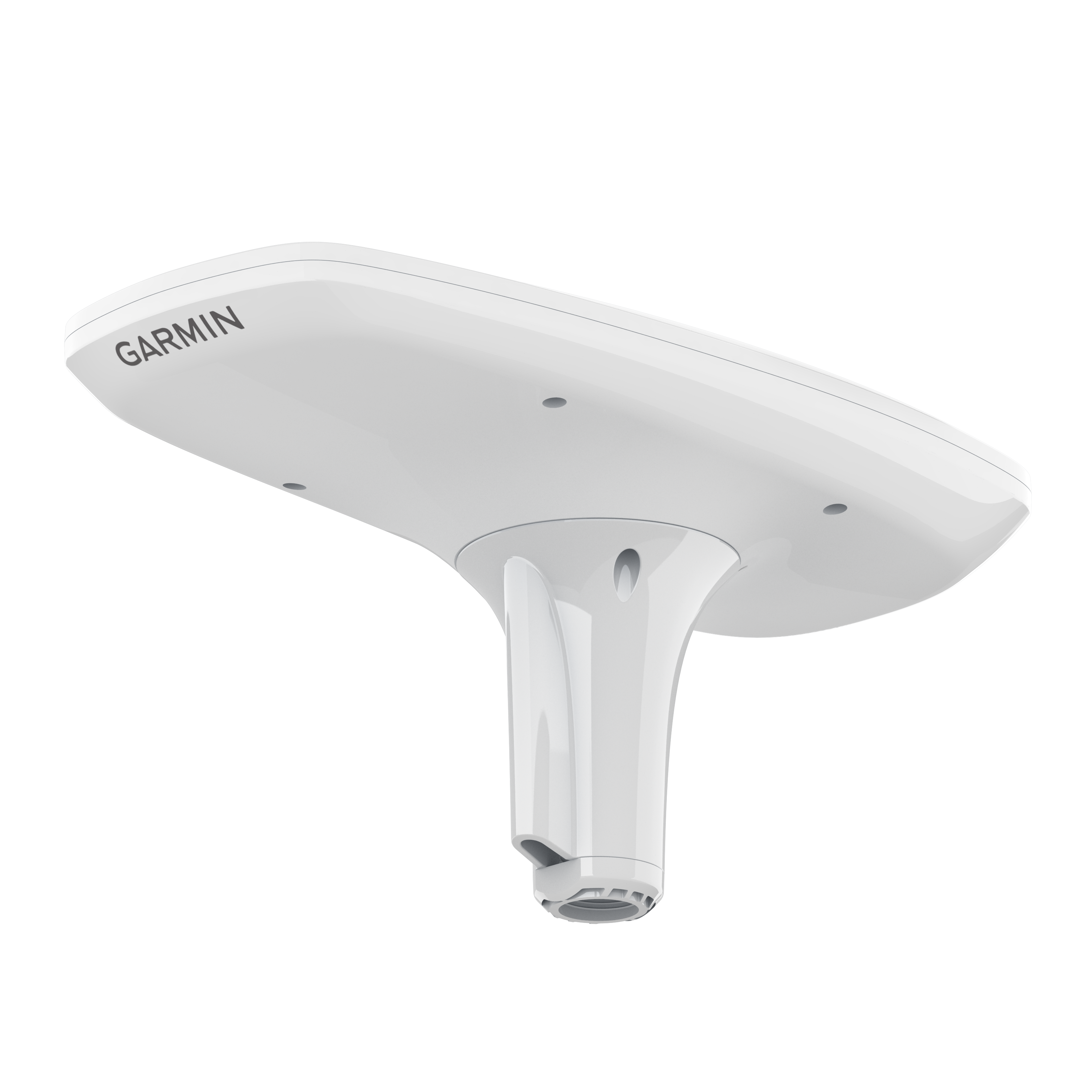

Garmin MSC 10, Nautical compass
754,24 € – 790,90 €
You save
Terms and Conditions
1ST ORDER DISCOUNT
Claim your initial 5% discount on your first order by registering on the SailRACE community.
CERTIFIED SUPPORT
Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.
Detailed Information
MULTI-BAND AND MULTI-CONSTELLATION GNSS
The multi-band GNSS (GPS L1 and L5) and multi-constellation (GPS, Galileo, GLONASS and BeiDou) receiver provides precise positioning1.
ARFADA OF THE BOAT AND MUCH MORE
Get reliable and accurate information about the boat’s pitch, pitching and swinging, even in irregular waters.
INTEGRATED DIRECTION AND POSITION REFERENCE SYSTEM (AHRS)
With a fully integrated course and position reference system to improve the GPS course at any speed, including heading in rough seas, when making closed turns or with the boat stopped.
ACCURATE ROUTE DATA
Several receivers provide course accuracy within a 2-degree radius. Since it uses satellite signals, you won’t have to worry about magnetic interference.
MAIN SENSOR IN SEVERAL SYSTEMS
You can use the MSC 10 compass as the main sensor for autopilots and other on-board systems that require accurate course information.
COMPATIBILITY WITH THE NMEA 2000® NETWORK
Get information about heading, anchoring, swinging and swaying directly on your compatible Garmin plotter through the NMEA 2000 network.
Features:
- Dimensions (W. x P. x H.): 155.5 x 333.6 x 76.2 mm (6.1′′ x 13.1′′ x 3.0′′)
- Weight: 810 g (28.6 oz)
- Cable length: 6 m (19 feet 8 inches)
- Temperature range (white): from -30 °C to 80 °C (from -22 °F to 176 °F)
- Temperature range (black): from -30 °C to 70 °C (from -22 °F to 158 °F)
- Housing material: plastic alloy sealed with glue and high impact resistance, waterproof according to IPX7 standards
- Safety distance of the compass: 0 mm (0′′)
- Power supply: from 9 to 32 V DC, irregular
- Power outlet: from 180 mA to 12 V DC
- Load equivalence number (LEN) of NMEA 2000: 6 (300 mA max.)
- Position accuracy, typical nautical use: <1 meter CEP, <3 meters 95%
- Course accuracy: 2 RMS
- Sharp precision: 8 cm RMS
Additional information
| Model | Nautical compass, heading sensor and multi-band GPS receiver, white, Nautical satellite compass MSC™ 10 Course sensor and multiband GPS receiver, black |
|---|---|
