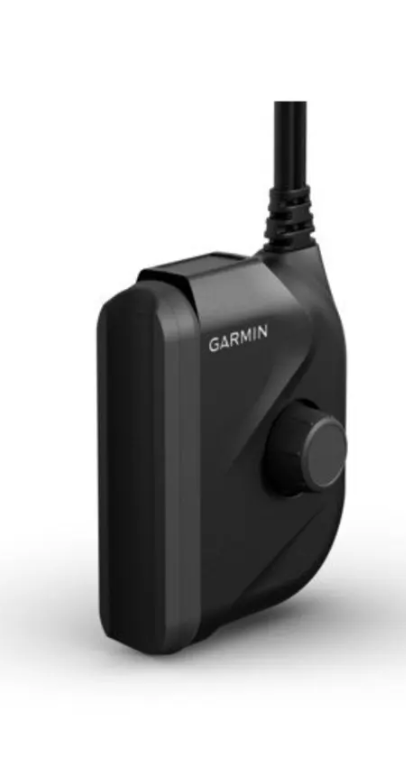

Garmin Panoptix™ PS22-TR

Name: Garmin Panoptix™ PS22-TR
SKU: 010-01945-00
Price: 882.69 EUR
Availability: OutOfStock

Original price was: 991,73 €.Current price is: 882,69 €.
You save

Out of stock

SKU: 010-01945-00 Categories: Garmin, Panoptix
Brand: Garmin

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order.
Claim it here!

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

OFFICIAL WARRANTY

We are Authorised Dealers for all brands. You will be fully covered.

Terms and Conditions

FAQ & Terms

LOCAL DELIVERY OPTIONS

Standard Delivery usually 3-7 days.
Express Delivery usually 2-4 days.

Rebate

PRICE GUARANTEE

If you find a cheaper price in the next 72 hours we will match it.

1ST ORDER DISCOUNT

Claim your initial 5% discount on your first order by registering on the SailRACE community.

CERTIFIED SUPPORT

Get support by officially certified experts. Detail us your refitting needs and we will help you determining the best solution.

Detailed Information

Transducer for electric drag motor with two Panoptix LiveVü modes

The LiveVü forward probe shows the structures and fish that are in front of and around the boat
The LiveVü downward probe shows what is around and under the boat, which will be very useful in vertical fishing and jigging
Narrow beam angle (20 degrees) for clear, sharp and higher resolution images
Installation on the axle or drum of the electric drag motors
Single-screw mounting design for simple mode changes

Garmin is the first company to offer your boat two Panoptix probe imaging modes in a single transducer. Panoptix, the probe that sees everything, is different from anything you’ve seen in the water. It offers you the possibility of seeing everything that surrounds your boat, and what is under it, in real time and at a distance of up to 90 m.

It’s not just a probe, it’s a Panoptix probe

Panoptix provides a whole new perspective on fishing. Other probes only show images of the fish over which the transducer has passed. To capture these images, it is necessary for the boat to move. Everything that appears on the screen is technically history; it’s a thing of the past. Panoptix LiveVü forward and the LiveVü down probes allow the boat to be in motion or stopped. Whatever the orientation of the electric drag motor, you will see live images of what happens underwater.

Fishing comes to life with Panoptix

You can see the bait as it dives, as well as its depth and movement when you recover it. You can see how it moves in relation to the structure in the water. You can see the way the fish swim and react to the bait. If they attack, you will be able to see and feel how they sting. Once they are on the hook, you will be able to see the fight on the screen in real time. With Panoptix LiveVü forward and LiveVü down, you will be able to see that everything comes to life at a distance of up to 90 m in front of and under the boat.

Specifications:

Physical And Performance Characteristics
FREQUENCY	417 kHz
ENERGY	48 W
BEAM WIDTH	90°x20°
MAXIMUM DEPTH	90 m down; 60 m forward
CABLE LENGTH	4 m power cable; 4 m Ethernet cable
DEPTH/SPEED/TEMPERATURE	Depth and temperature
NUMBER OF SIDEBURNS	Ethernet
AFT MIRROR ANGLES ALLOWED	Support for axle or drum of electric trawl motor
