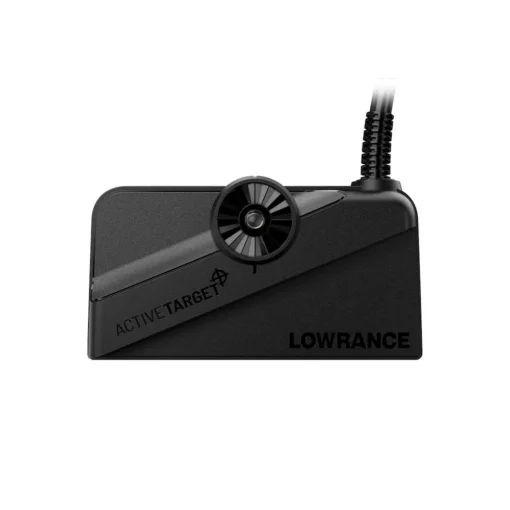

Lowrance Activetarget Transducer Only Replacement

ActiveTarget™ Live Sonar – Game On!

Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.

Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.

ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.

Details:

• Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
• See how fish are positioned in and around structure and watch them respond to your lure as it happens
• High-resolution live images remove the guesswork from sonar interpretation
• Know whether fish are active
• Compatible with HDS LIVE, HDS Carbon and Elite FS

Especifications:

Cartography

Chart Format	N/A
Charts Supported	N/A

Connectivity

NMEA 0183 Sentences supported	N/A
Bluetooth	N/A
Ethernet	Yes:1 – 100 Mbit Ethernet Port
N2K PGNs	N/A
NMEA 0183	N/A
NMEA 2000	N/A
PC Connectivity	N/A
Video	N/A
WiFi	N/A

Display

Backlight Color	N/A
Resolution	N/A
Screen Brightness	N/A
Size and Type	N/A
Viewing Angles	N/A

Electrical

Power Consumption, max.	1.5A @ 13.8VDC
Power Consumption, typical	1.5A @ 13.8VDC
Recommended Fuse Rating	3A
Supply Voltage	10.8 VDC – 31.2 VDC
Humidity	60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	100,000 cycles of 20 G
Storage Temperature Range	-22°F to 158°F (-30°C to 70°C )
Waterproof rating	IP67

MFD

Compass Safe Distance – Metric, imperial	N/A

Physical

Dimensions (W x H x D)	Module:8.63″ (219.3mm) x 7.56″ (192.1mm) x 2.86″ (72.9mm)Transducer:5.90″ (149.8mm) x 3.24″ (82.4mm) x 2.28″ (58.0mm)
Mounting Type	Module:Surface MountTransducer:Bracket Mount
Weight	Module:4.12 lbs (1.86 kg)Transducer:2.67 lbs (1.21 kg)

Radar

Frequencies	550kHz – 1100kHz
Max Depth	200′ (60.96m)

Other

Warranty Period	1 Year + 4 additional years ofupgrade optionsTotaling 5 years
Interface	Ethernet to:HDS ProHDS LiveHDS CarbonElite FS
Languages	N/A

Weight	2,5 kg
Dimensions	22,8 × 22,8 × 11,9 cm
Brand	Lowrance
Class Type	Sonar – Sensors and Transducers
Component	Sensor/Transducer/Scanner/Antenna
Family	Lowrance Live Sonar
Item Type	Main Product
Model	Lowrance Live Sonar Products
sku	000-15594-001
GTIN	9420064115464
