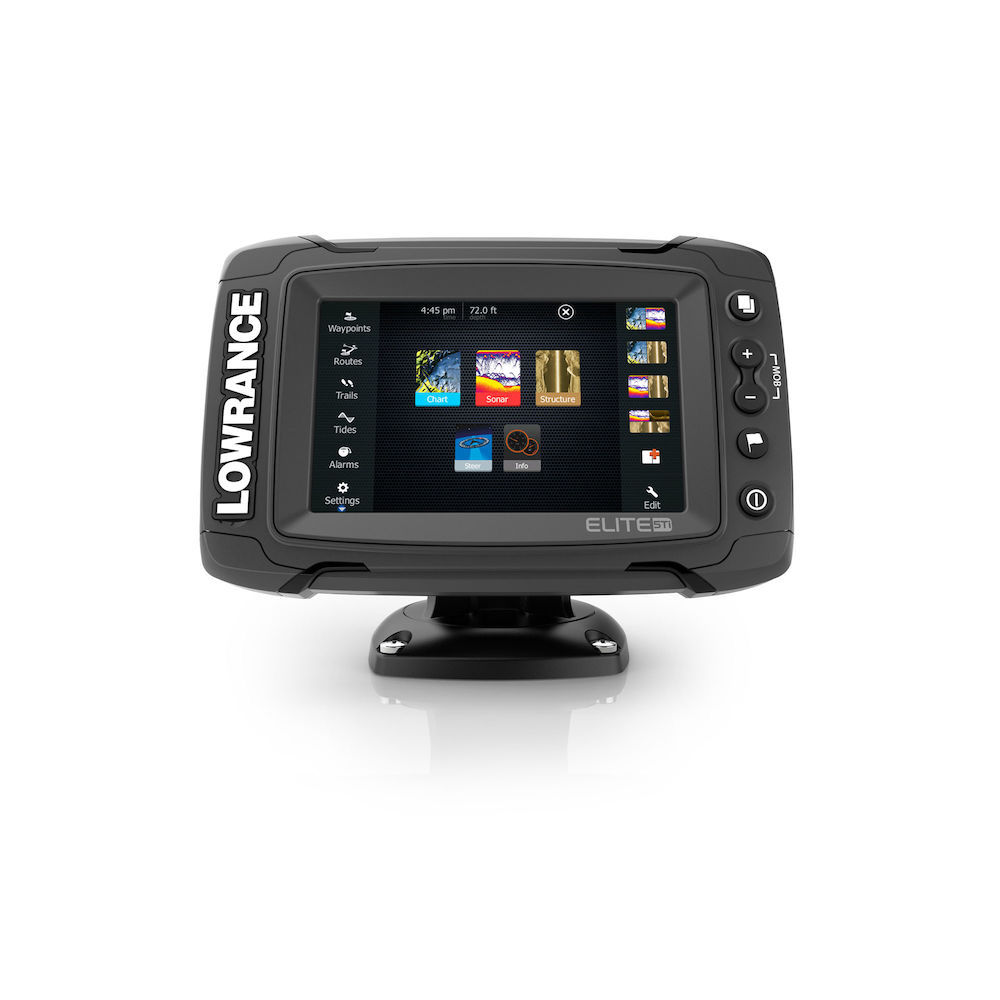

Lowrance Elite-5 Ti with Mid/High/DownScan™ with Free Insight Pro Card

Anglers looking to step up to easy-touchscreen operation at an affordable price will find the Elite-5 Ti a perfect fit. Featuring an ultra-bright SolarMAX display, the Elite-5 Ti includes built-in CHIRP sonar with TrackBack™, support for StructureScan® HD with SideScan and DownScan Imaging™, wireless connectivity, an internal GPS antenna, plus numerous chart upgrade options, including C-MAP®, Navionics® and more.

• Single-touch 5″ Widescreen.
• Built-in CHIRP/Broadband Sounder.
• Built-in StructureScan® (requires optional TotalScan™ transducer).
• Built-in 10Hz GPS/GLONASS antenna.
• Built-in Wireless connectivity.
• Built-in Bluetooth connectivity.
• Best-in-class screen brightness.
• Single micro SD card slot.
• Wide selection of cartography options.
• Uses Quick Release Bracket.

Connectivity

Bluetooth	Integrated
Ethernet	None
N2K PGNs	None
NMEA 0183	Optional (with 000-0127-49 accessory)
NMEA 2000	None
PC Connectivity	None
Video	None
WiFi	Integrated

Display

Backlight Color	Pure White LED
Resolution	800×480
Screen Brightness	1200 nits
Size and Type	5.00″ (127mm) WVGA color TFT LCD
Viewing Angles	80° top/bottom, 85° left/right

Electrical

Power Consumption, max.	0.9A @ 13VDC with backlight on full
Power Consumption, min.	0.9A @ 13VDC with backlight on full
Power Consumption, typical	0.9A @ 13VDC with backlight on full
Recommended Fuse Rating	3A
Supply Voltage	12 v DC (10.8-17VDC)

Environment

Operating Temperature Range	5°F to 131°F (-15°C to 55°C )
Shock and Vibration	EN60945
Storage Temperature Range	5°F to 131°F (-15°C to 55°C )
Waterproof rating	IPX7 with card door closed

GPS

Correction	DGPS, WAAS
GPS Receiver Channels	16
Position Accuracy	20m RMS
Time to First Fix	30s
Update rate	10 Hz

MFD

AIS	AIS Chart overlay. Target vessel details.
Autopilot	None
Cartography included	Enhanced Elite basemap, with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
Cartography supported	Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
Digital Switching	None
External Storage	1 micro SD card up to 32GB
GPS	10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal Storage	None
Multimedia	None
Radar (inc. compatibility)	None
Sonar (inc. compatibility)	Integrated: CHIRP, Broadband, DownScan & StructureScan (Cannot do Simultaneous CHIRP & StructureScan)
Weather	None
Waypoints, Routes, Tracks	3000 Waypoints, 100 Routes and 100 Trails with up to 10,000 points per trail
Compass Safe Distance – Metric, imperial	12″ (300mm)

Physical

Mounting Type	Gimbal Bracket or Dash Flush Mount
Weight	1.20 lbs (0.54 kg)

Other

Warranty Period	1 Year
Interface	Touchscreen and Zoom +/-, MOB, Pages, Waypoint,Light/Power
Languages	Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文 Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano

Weight	2,8 kg
Dimensions	20,8 × 27,62 × 23,5 cm
Brand	Lowrance
Family	Elite Ti
Model	Elite-5Ti
Class Type	Fishfinder/Chart
Component	Head/Display
Item Type	Main Product
