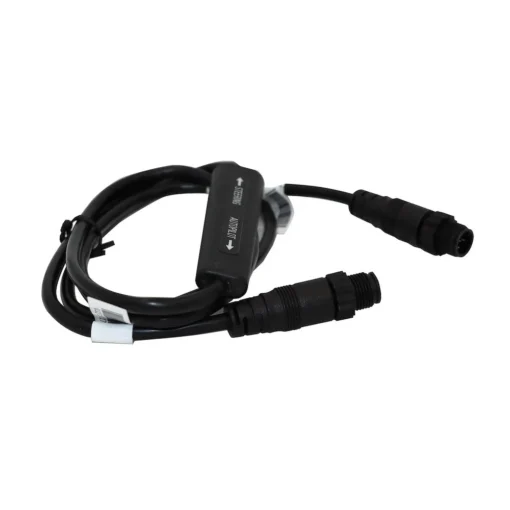

Navico Nac-d Autopilot Computer

NAC™ -D is a steer-by-wire autopilot solution for Electronic Vessel Control Systems (steering systems with a digital interface).

With NAC -D, boaters with SeaStar® Optimus®, Yanmar® VC10/JC10, Volvo® IPS/EVC or Yamaha® helm master/single engine control systems can benefit from all the full features and performance of Simrad® autopilots.

Easy to install
Requires only the connection of two Micro-C connectors – there is no requirement for an additional hydraulic pump, rudder sensor installation or dockside rudder calibration. This saves boaters’ time and money.

Automatic switching
Featuring Continuum® steering and support for the new SteadySteer™, the NAC -D allows automatic switching between two speed profiles delivering optimal steering performance at both low and high speeds.

Flexible choice
Choose the controller to suit your preference from dedicated controllers like the AP™ 44 or AP 48.

Simrad® autopilot systems incorporate state-of-the-art electronics and represent over 70 years of experience and development. Simrad® autopilots can reduce your workload and fatigue and improve your situational awareness and safety, helping you arrive fresher at your destination.

Details:

• SeaStar Solutions®, Volvo®, Yanmar® and Yamaha® approved control system interface
• Control via AP™ 44, AP 48
• No need for an additional hydraulic pump, rudder sensor, or dockside calibration
• SteadySteer™ feature included
• Steer to a waypoint, heading or set turn pattern, such as a U turn, Spiral turn and many more – the NAC™ -D can even initiate a zigzag turn
• CAN-bus data connectivity – connection to Optimus® steering systems via the CAN-bus data network

Especifications:

Approvals

Compliance	n/a

Autopilot

Compass sensor support	NMEA 2000
Max Boat Length	n/a
Max Stroke	n/a
Drive output	EVC
Engine Drive systems integration	Volvo EVC, Yamaha, Yanmar, Optimus
Manouevres / Turn Patterns	C-turn, U-turn, Zigzag turn, Square turn, S-turn, Depth counter tracking (DCT)
Steering Modes	n/a

Connectivity

NMEA 0183 Sentences supported	n/a
Bluetooth	n/a
NMEA 0183	n/a
NMEA 2000	2 x NME2000 Micro-C port, 2 LEN
PC Connectivity	n/a
WiFi	n/a

Display

Backlight Color	n/a
Resolution	n/a
Screen Brightness	n/a
Size and Type	n/a
Viewing Angles	n/a

Electrical

Power Consumption, max.	40mA
Power Consumption, typical	40mA
Recommended Fuse Rating	n/a
Supply Voltage	9-16V via CAN

Environment

Operating Temperature Range	0C to +55C (+32F to +131F)
Storage Temperature Range	-30C to +70C (-22F to +131F)
Waterproof rating	IP44

MFD

Compass Safe Distance – Metric, imperial	0,5m (19,7″)

Physical

Dimensions (W x H x D)	86,5 x 20,0 x 11,5mm (3,4 x 0,8 x 0,45″)
Mounting Type	Inline with cable
Weight	0,1kg (0,2 lbs)

Other

Warranty Period	2 years
Interface	n/a
Languages	n/a

Brand	Navico
Class Type	Autopilots
Component	Processor/Computer/Ethernet Module
Family	Navico Autopilots Family
Item Type	Main Product
Model	Navico NAC-D
sku	000-15621-001
GTIN	9420064115747
