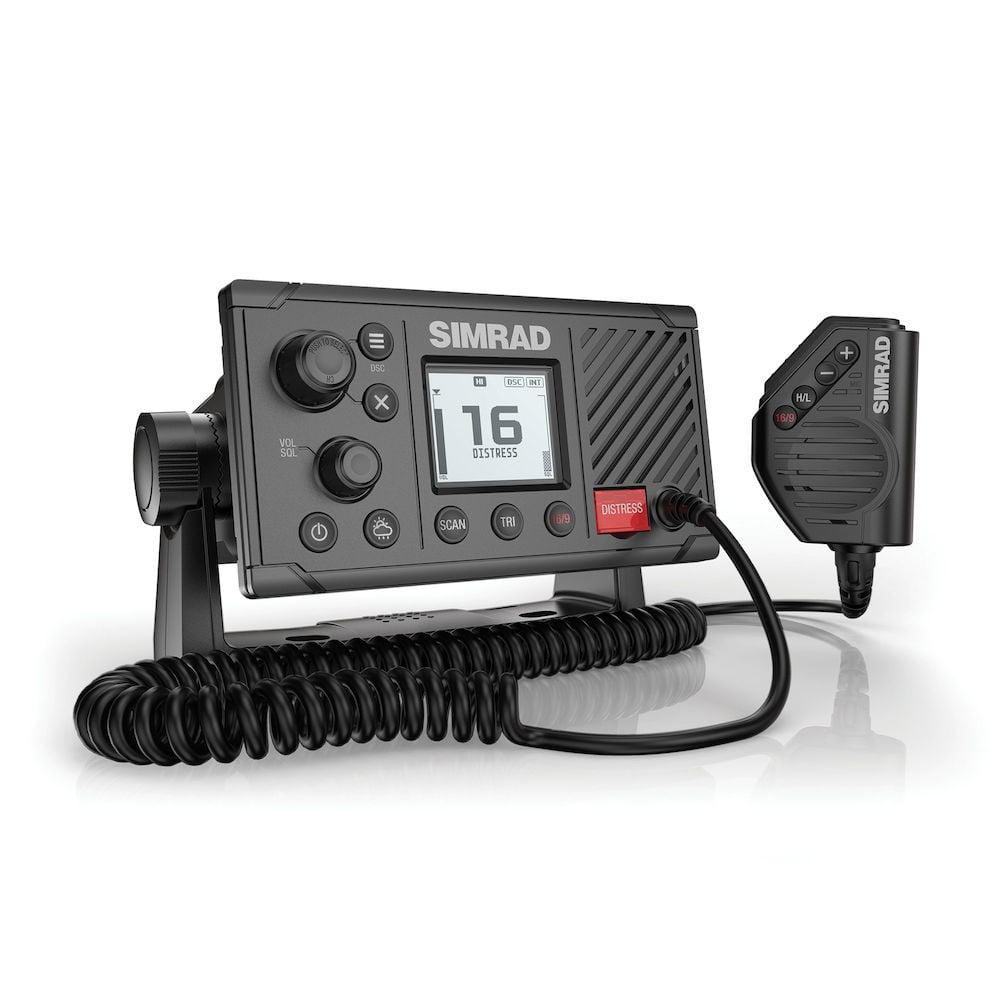

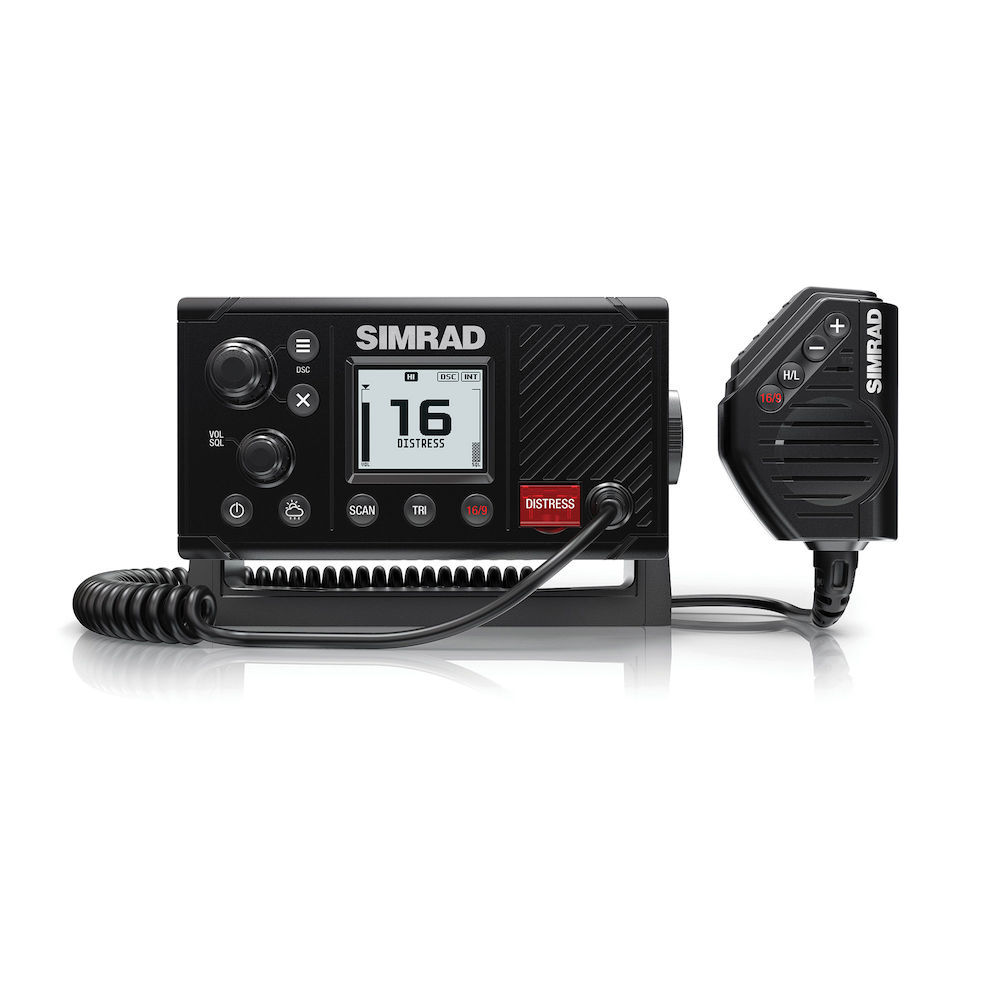

Simrad RS20 Class D DSC VHF Radio

An Easy to Use Radio for Any Vessel

See clearly in bright daylight with a high contrast black-on-white display, and inverted white-on-black night mode. A rotary dial makes channel selection easy, while large buttons provide quick access to other key functions. Dedicated Channel 16 keys, found on both the radio and its fist microphone, offer instant access to the emergency channel. An included gimbal bracket enables simple table-top, overhead, or bulkhead installation. Flush-mount installation is also possible, with an easy mount-from-front solution, to match the low-profile style of our glass bridge displays and accessories.

Class D DSC Approved

An integrated Distress button allows quick DSC distress calling, which sends your vessel’s location to other DSC-equipped radios in range. DSC capabilities also enable direct calling to other DSC-equipped vessels from a Simrad multifunction display, including direct calls to vessels detected over AIS.

Easy Access to All International Channels

The RS20 is designed for global use and supports all international channels. With tri-channel watch, easily scan between the current channel, emergency channel 16, and another user-configurable priority channel (in the USA, scan between the current channel, emergency channel 16, and calling channel 9). Alternatively, scan through all available channels or just your selected favourites. Emergency channels can be given priority when scanning to reduce the chance of missing distress calls or other urgent safety messages.

• High-visibility display with inverted night mode.
• Intuitive rotary dial and keypad controls.
• Four-button fist microphone.
• Class D DSC Approved.
• NMEA 2000® compatible.
• Dedicated Channel 16 keys.
• Tri-channel watch function.
• All international channels.
• Easy bracket or flush-mount installation.

Communications

Channels	US/CAN/INT
DSC Class	Class D
Frequency Range	TX: 156.025～157.425 MHz RX:156.050～163.275 MHz
Hailer Function	No
Handset type	Fistmic
Multiple Stations	No
Transmit Power	Hi 23W ± 2W : Lo 0.8W ± 0.2W

Connectivity

NMEA 0183 Sentences supported	DSC,DSE
NMEA 0183	1TX, 1 RX
NMEA 2000	1 Port

Display

Backlight Color	White

Electrical

Power Consumption, max.	Hi ≤6A: Lo ≤1.5A
Power Consumption, typical	≤0.5 A
Recommended Fuse Rating	8 A
Supply Voltage	12VDC

Environment

Operating Temperature Range	-15°C to +55°C (5°F to 131°F)

Physical

Dimensions (W x H x D)	165.9 x 88.2 x 159.8mm
Mounting Type	Flush, Bracket

Other

Warranty Period	24 Months
Languages	English

Weight	12 kg
Dimensions	50,6 × 54 × 25,3 cm
Brand	Simrad Yachting
Family	VHF -Fixed Mount
Model	RS20
Class Type	VHF
Component	Head/Display
Item Type	Main Product
